Compressed Air Driven 1000mm Diameter Round Basket N2 Reflow Oven Flux Condensor Cleaning Machine.
Pneumatic control, powerful cleaning ability, easy operation, easy maintenance.
Air pumps, air motor, mechanical meters, mechanical valves.

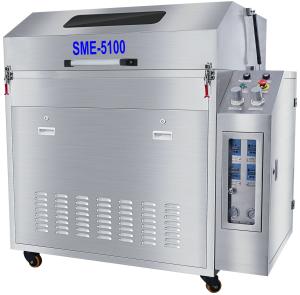

SME-5100 Compressed Air Driven 1000mm Diameter Round Basket Reflow Oven Flux Cooler And Filter Cleaning Machine. is used to clean flux on reflow oven coolers and filters.... It is a pneumatic cleaning machine, not use electric power. Both solvent and water based liquid can be used in this machine. Very easy to operate and maintenance.
Machine Features:
1. Pneumatic control, no use electric power at all, absolutely clean safe.
2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
5. Solvent recycled to use to make cost down.
6. Both solvent and water based liquid can be used.
7. Non contact clean, protect cooler
8. Standard equipped with auto fill-in and drain-out function.
9. Inner lock safety design, once door open, the machine stops immediately.
Machine Spec:
| Item | SME-5100 |
| Cleaning basket size | Φ1000 x H 200(mm) |
| Clean spray unit | Upper/Lower/front side, all-round spray, basket rotate |
| 2-level filter | 1mm/20um filter |
| Clean time | 5~15 Min |
| Rinse time | 1~2 Min |
| Air dry time | 5~10min |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Clean spray pressure | 2~4kg/cm2 |
| Air supply | 0.5~0.7Mpa,800~1000L/min |
| Machine size | L1450 x W1550 x H 1400 (mm) |
| Machine weight | 400KG |
Customer questions and Answers:
Q1: Is SME-5100 safe?
A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.
Q2: How SME-5100 clean products?
A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.
Cleaning comparison pictures beofre and after cleaning:
